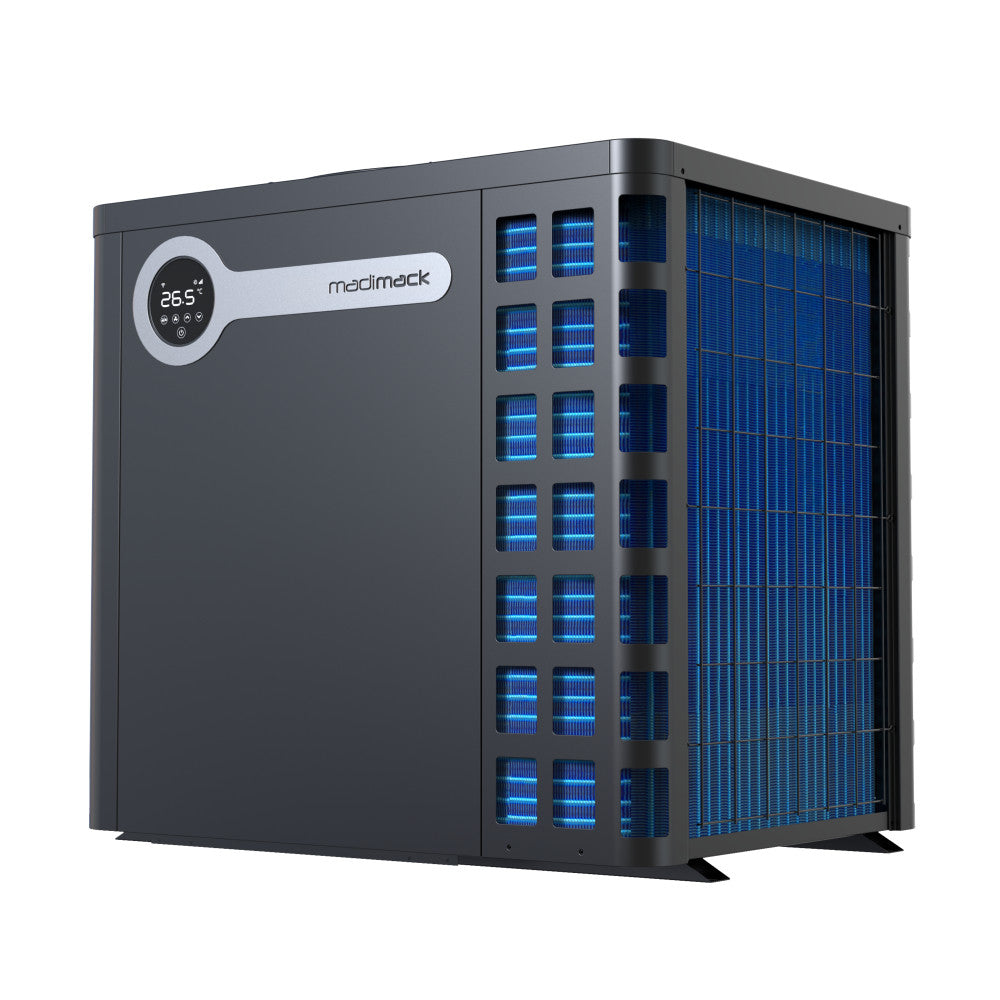

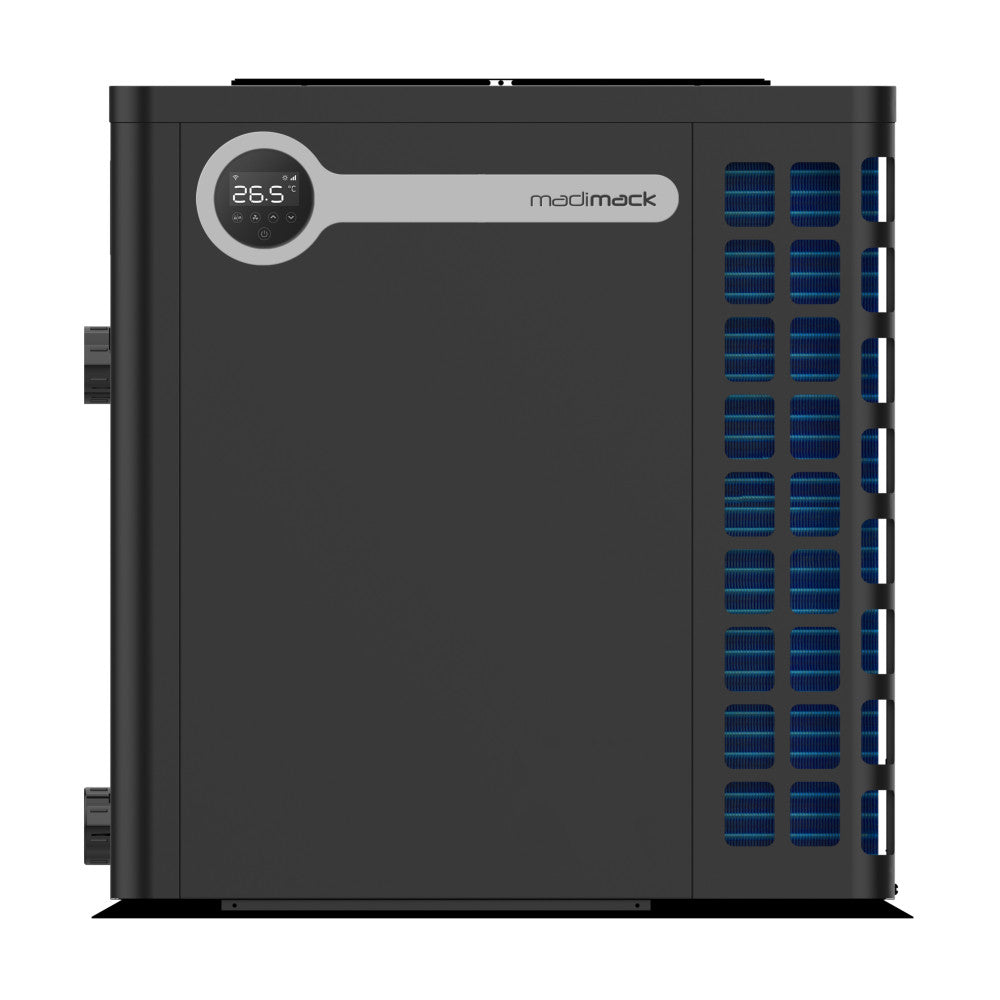

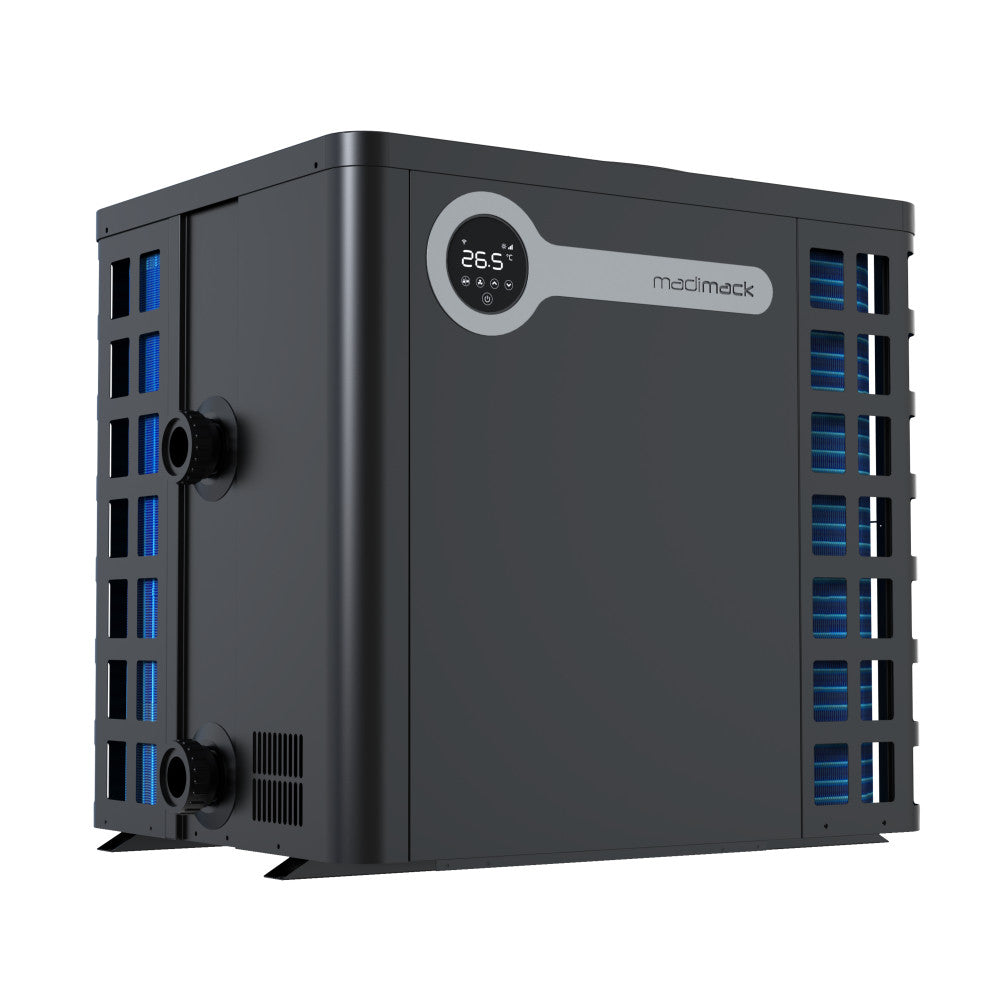

Madimack InverTITAN 90,000 BTU Variable Speed Pool Heat Pump
Madimack InverTITAN 90,000 BTU Variable Speed Pool Heat Pump
POWERFUL PERFORMANCE. EFFICIENT OPERATION.
Designed and engineered to meet the highest requirements for cooling and heating options, with full inverter compressor and top discharge fans for a streamlined efficient air flow. Powerful performance supported by the latest eco-friendly technology. Enjoy new possibilities for pool heating and cooling with the space saving and slick design of the InverTITAN. Limited space is no longer a concern. Full Stepless DC Compressor, marine grade aluminium alloy casing, Twisted Titanium Heat Exchanger and Madimack’s Advanced Sound Suppression Technology for whisper quiet operation.
Soft Start
InverTITAN will start from 0 amps and increase steadily protecting electrical systems
Operation down to 14°F
Built to operate in the coldest weather and extend your pool season into the winter
Built-in WIFI
Built-in WIFI and smart app provides convenience to control your pump on-the-go
Twin-rotary compressor
Significantly reduced operating noise
Electronic expansion valve
Optimized flow of refrigerant 20% higher COP
Twisted titanium heat exchanger
Increased area for heat exchange 40% higher efficiency
Smart & quick defrosting
InverTITAN is equipped with reverse cycle defrosting detecting frost accumulation during operation and automatically switch to defrosting mode
USER MANUAL
PRODUCT SPECIFICATIONS
SPECIFICATIONS:
Maximum BTU / hr | 90,000 BTU |
COP Range (Ideal Conditions) | 14.3 – 6.0 |
Operating Air Temperature | 14ºF – 109ºF (-10ºC – 43ºC) |
Heat Exchanger | Titanium in PVC |
Power Supply | 240V |
Water Connection | 2″ |
Wi-Fi Connectivity | Yes |
Sounds at 10ft (dBA) | 34.3 – 46.5 dBA |
Net Dimensions | 36.8″ L x 27.4″ W x 38.9″ H |
Heater Weight | 290 lbs |
Dealer-Exclusive Warranty | 3 Years Parts 5 Years Compressor 25 Years Heat Exchanger |
